SeaVent Double Dual Seal
Dual O-ring pressure relief valve in titanium or PEEK
Learn more: SeaVent Double Dual SealDEEPSEA POWER & LIGHT · RELIEF VALVES

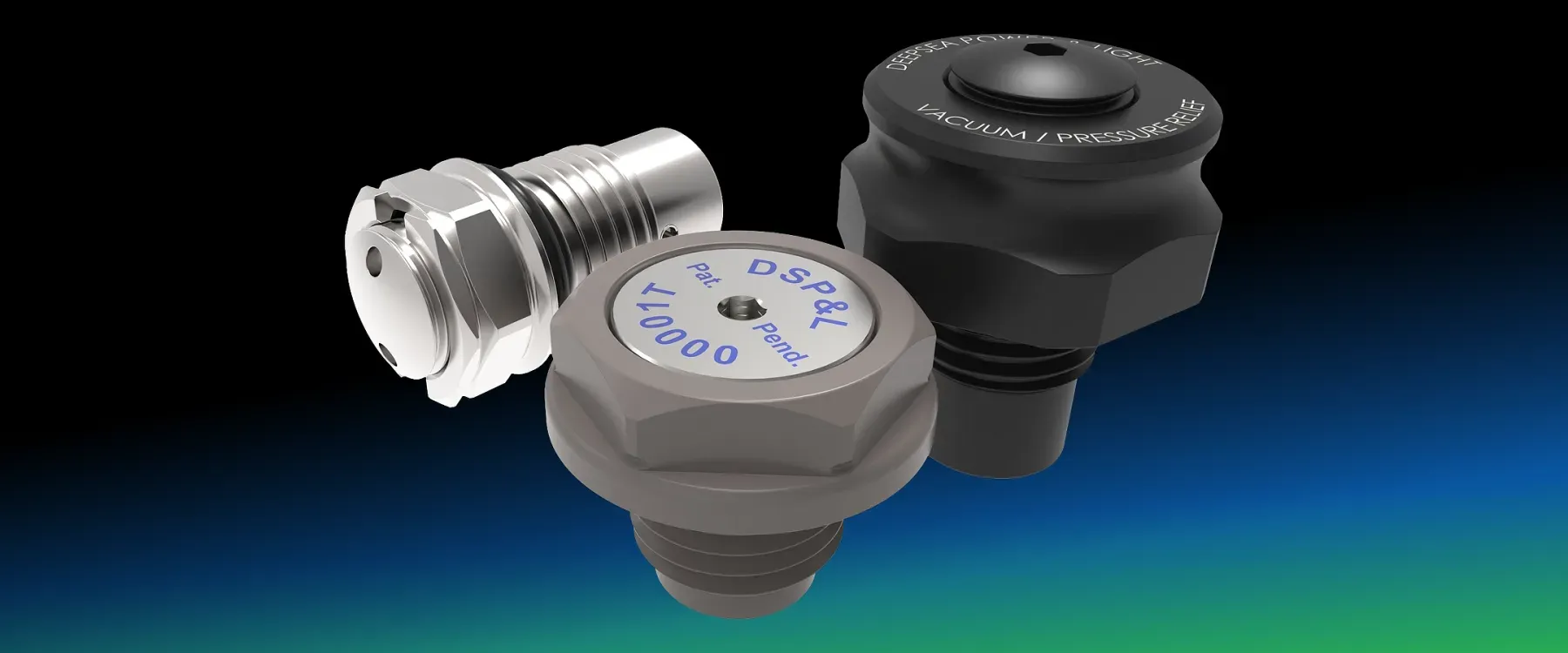

SeaVent Single Dual Seal
Pressure relief valve in aluminum, stainless steel or titanium
Request a quoteDescription
A pressure relief valve specified with a 5–15 psi or 15–25 psi cracking pressure range. The body can be 6061 aluminum, passivated 316 stainless steel or titanium, the latter rated to 11,000 m and the others to 6,000 m. An optional vacuum attachment is available.
Highlights
- 5–15 psi cracking range (15–25 psi optional)
- Aluminum, stainless steel or titanium
- 10 psi default cracking pressure
- Vacuum attachment available
- 7/16-20 thread with #4 SAE J1926 port
- 6,000 m standard, 11,000 m in titanium
